一、前提条件

系统环境为:

[root@llyLinux application]# cat /etc/redhat-release

CentOS release 6.7 (Final)

[root@llyLinux application]# uname -r

2.6.32-573.el6.x86_64

需要准备的安装包为：

subversion-1.6.1.tar.gz

subversion-deps-1.6.1.tar.gz

apache-maven-3.3.3-bin.tar.gz

二、SVN部分

[root@softtest application]# pwd

/application



#上传subversion-1.6.1.tar.gz和subversion-deps-1.6.1.tar.gz到此目录下

[root@softtest application]# tar xf subversion-1.6.1.tar.gz

[root@softtest application]# tar xf subversion-deps-1.6.1.tar.gz



#创建编译路径

[root@softtest application]# mkdir subversion

[root@softtest application]# ls -ld subversion

drwxr-xr-x 2 root root 4096 Sep  1 11:46 subversion



[root@softtest application]# cd subversion-1.6.1



[root@softtest subversion-1.6.1]#./configure --prefix=/application/subversion

checking openssl/opensslv.h usability... no

checking openssl/opensslv.h presence... no

checking for openssl/opensslv.h... no

configure: error: We require OpenSSL; try --with-openssl

configure failed for serf



#如果编译结束出现上述错误，那么需要安装下述软件之后再次编译

[root@softtest subversion-1.6.1]# yum install openssl openssl-devel -y



[root@softtest subversion-1.6.1]#make && make install



[root@softtest subversion-1.6.1]#cd /application/subversion/bin



[root@softtest bin]# svnserve --version

svnserve, version 1.6.11 (r934486)

   compiled Jul 23 2015, 23:48:52



Copyright (C) 2000-2009 CollabNet.

Subversion is open source software, see http://subversion.tigris.org/

This product includes software developed by CollabNet (http://www.Collab.Net/).



The following repository back-end (FS) modules are available:



* fs_base : Module for working with a Berkeley DB repository.

* fs_fs : Module for working with a plain file (FSFS) repository.



Cyrus SASL authentication is available.





[root@softtest bin]# cd /application/



[root@softtest application]# ln -s /application/subversion /application/svn



[root@softtest application]# ls svn/

bin  build-1  include  lib  share



[root@softtest application]# echo "PATH=/application/svn/bin:$PATH" >> /etc/profile



[root@softtest application]# svnserve --version



[root@softtest application]# tail -1 /etc/profile

PATH=/application/svn/bin:/application/maven/bin:/application/jdk/bin:/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin:/root/bin:/root/bin



[root@softtest application]# source /etc/profile



[root@softtest application]# svnserve --version



#开启SVN服务进程

[root@softtest application]# svnserve -d -r /application/

这个命令的作用是开启svn服务进程，并且把/application/目录作为我们的svn服务的根目录。以后，当我们要在客户端checkout代码的时候，svn服务进程就会从这里开始进行查询，类似于apache的/var/www/目录的作用。运行如下命令检查svn服务是否开启了。

[root@svnnexus /]# ps -ef|grep svn|grep -v grep

root     115292      1  0 16:19 ?        00:00:00 svnserve -d -r /application/



#创建SVN版本库

[root@softtest application]# mkdir /application/svnrepos -p

[root@softtest application]# svnadmin create /application/svnrepos





#修改SVN版本库配置文件，修改的配置文件内容，务必按照下面的弄，千万不要有多余空格

[root@softtest application]# cd svnrepos

[root@softtest svnrepos]# ls

conf  db  format  hooks  locks  README.txt

[root@softtest svnrepos]# cd conf/



#svn服务配置文件，该文件版本库目录的conf目录下

[root@softtest conf]# cp svnserve.conf svnserve.conf.ori

[root@softtest conf]# egrep "anon-access|auth-access|password-db|authz-db" /application/svnrepos/conf/svnserve.conf

# anon-access = read

anon-access = none#使非授权用户无法访问

# auth-access = write

auth-access = write#使授权用户有写权限

### The password-db option controls the location of the password

# password-db = passwd

password-db = passwd#指明密码文件路径

authz-db = authz#指定权限配置文件名，通过该文件可以实现以路径为基础的访问控制。



#修改SVN版本库用户,用户名口令文件，该文件名在文件svnserve.conf中指定，缺省为同目录下的

[root@softtest conf]# cp passwd passwd.ori

[root@svnnexus conf]# cat passwd

### This file is an example password file for svnserve.

### Its format is similar to that of svnserve.conf. As shown in the

### example below it contains one section labelled [users].

### The name and password for each user follow, one account per line.



[users]

# harry = harryssecret

# sally = sallyssecret

#在最下面按照格式加入svn的用户名和密码,自定义即可

admin = admin

zhangsan= zhangsanpwd



#权限配置文件，该文件名也在文件svnserve.conf中指定，缺省为同目录下的

[root@softtest conf]# cp authz authz.ori

[root@svnnexus conf]# cat authz

### This file is an example authorization file for svnserve.

### Its format is identical to that of mod_authz_svn authorization

### files.

### As shown below each section defines authorizations for the path and

### (optional) repository specified by the section name.

### The authorizations follow. An authorization line can refer to:

###  - a single user,

###  - a group of users defined in a special [groups] section,

###  - an alias defined in a special [aliases] section,

###  - all authenticated users, using the '$authenticated' token,

###  - only anonymous users, using the '$anonymous' token,

###  - anyone, using the '*' wildcard.

###

### A match can be inverted by prefixing the rule with '~'. Rules can

### grant read ('r') access, read-write ('rw') access, or no access

### ('').



[aliases]

# joe = /C=XZ/ST=Dessert/L=Snake City/O=Snake Oil, Ltd./OU=Research Institute/CN=Joe Average



[groups]

admin = admin

zhangsan=zhangsan

# harry_and_sally = harry,sally

# harry_sally_and_joe = harry,sally,&joe

# [/foo/bar]

# harry = rw

# &joe = r

# * =

# [repository:/baz/fuz]

# @harry_and_sally = rw

# * = r

#最下面加入，这三行的意思是，目录[svnrepos:/]（代码根目录,对应svnadmin的版本库名称）下的所有文件，如果没有特殊约定的话，zhangsan用户将具有读（r）和写（w）的权限。

[svnrepos:/]

@admin = rw

@zhangsan = rw



#修改完svn配置文件，记得杀掉SVN进程后，重新开启SVN进程svnserve -d -r /application/

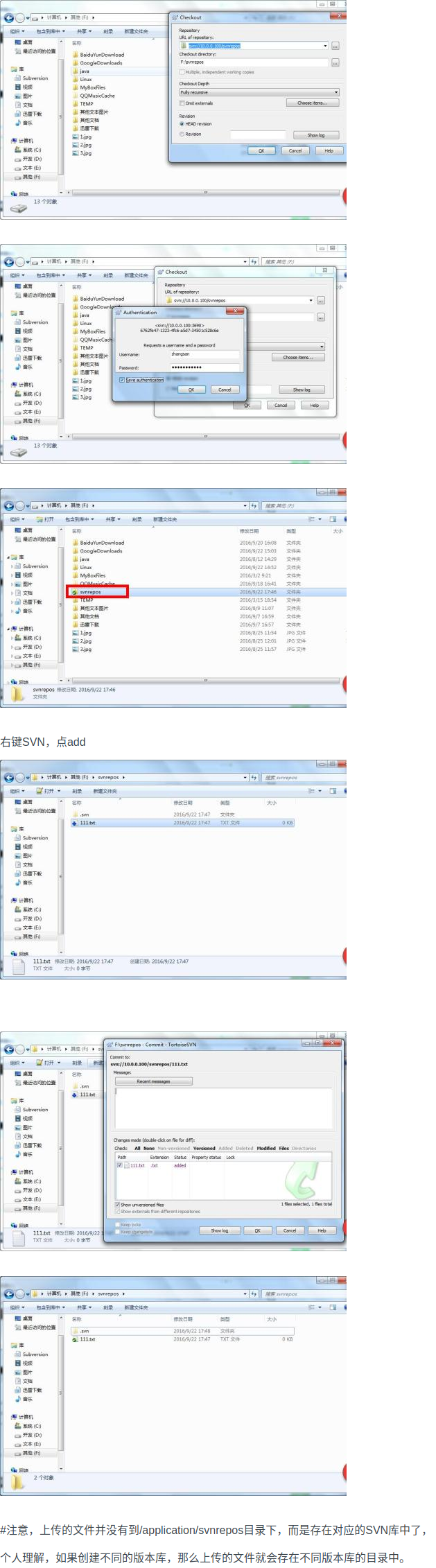

三、windows客户端连接
