java单应用体系下的秒杀案例-1

  ,
0 评论0 浏览

此介绍基于慕课网案例,经个人改造总结在java单应用体系下的秒杀系统的基本实现方案。其中不包括用户注册和后台管理功能。 此案例为秒杀初始版本,在之后会不断优化秒杀案例。

开发工具

Idea2018.1-64
Ubuntu18-64

主要技术栈

JDK1.8-64
Springboot1.5.8.RELEASE
Mybatis3.4.5
Mysql6.0.6
Rabbitmq4.0.3
Redis4.0.14
Thymeleaf2.1.5
Html

功能点

用户登录明文密码两次MD5处理
JSR303参数校验
全局异常处理器
分布式session
页面缓存
对象缓存
商品详情静态化
秒杀静态化
订单详情静态化
商品超卖
生成订单

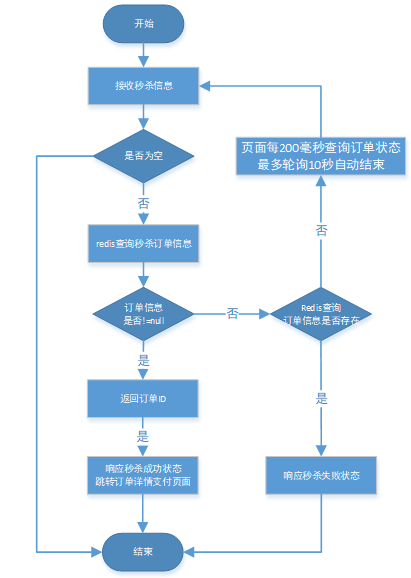

轮询查看订单状态
隐藏秒杀地址
图形验证码
接口限流防刷

表结构

#以下表结构并不是正规的3范式结构。

  • 商品表
CREATE TABLE `goods` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '商品ID',
  `goods_name` varchar(16) DEFAULT NULL COMMENT '商品名称',
  `goods_title` varchar(64) DEFAULT NULL COMMENT '商品标题',
  `goods_img` varchar(64) DEFAULT NULL COMMENT '商品图片',
  `goods_detail` longtext COMMENT '商品详情介绍',
  `goods_price` decimal(10,2) DEFAULT '0.00' COMMENT '商品单价',
  `goods_stock` int(11) DEFAULT '0' COMMENT '商品库存,-1表示没有限制',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8mb4;
  • 秒杀商品表
CREATE TABLE `miaosha_goods` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '秒杀的商品表',
  `goods_id` bigint(20) DEFAULT NULL COMMENT '商品ID',
  `miaosha_price` decimal(10,2) DEFAULT '0.00' COMMENT '秒杀价',
  `stock_count` int(11) DEFAULT NULL COMMENT '库存数量',
  `start_date` datetime DEFAULT NULL COMMENT '秒杀开始时间',
  `end_date` datetime DEFAULT NULL COMMENT '秒杀结束时间',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8mb4;
  • 秒杀订单表
CREATE TABLE `miaosha_order` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `user_id` bigint(20) DEFAULT NULL COMMENT '用户ID',
  `order_id` bigint(20) DEFAULT NULL COMMENT '订单ID',
  `goods_id` bigint(20) DEFAULT NULL COMMENT '商品ID',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=17 DEFAULT CHARSET=utf8mb4 COMMENT='秒杀订单表';
  • 秒杀用户信息表
CREATE TABLE `miaosha_user` (
  `id` bigint(20) NOT NULL COMMENT '用户ID,手机号码',
  `nickname` varchar(255) NOT NULL,
  `password` varchar(32) DEFAULT NULL COMMENT 'MD5(MD5(pass明文+固定salt) + salt)',
  `salt` varchar(10) DEFAULT NULL,
  `head` varchar(128) DEFAULT NULL COMMENT '头像,云存储的ID',
  `register_date` datetime DEFAULT NULL COMMENT '注册时间',
  `last_login_date` datetime DEFAULT NULL COMMENT '上次登录时间',
  `login_count` int(11) DEFAULT '0' COMMENT '登录次数',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
  • 订单表
CREATE TABLE `order_info` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `user_id` bigint(20) DEFAULT NULL COMMENT '用户ID',
  `goods_id` bigint(20) DEFAULT NULL COMMENT '商品ID',
  `delivery_addr_id` bigint(20) DEFAULT NULL COMMENT '收货地址ID',
  `goods_name` varchar(16) DEFAULT NULL COMMENT '冗余过来的商品名称',
  `goods_count` int(11) DEFAULT '0' COMMENT '商品数量',
  `goods_price` decimal(10,2) DEFAULT '0.00' COMMENT '商品单价',
  `order_channel` tinyint(4) DEFAULT '0' COMMENT '1pc,2android,3ios',
  `status` tinyint(4) DEFAULT '0' COMMENT '订单状态,0新建未支付,1已支付,2已发货,3已收货,4已退款,5已完成',
  `create_date` datetime DEFAULT NULL COMMENT '订单的创建时间',
  `pay_date` datetime DEFAULT NULL COMMENT '支付时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `u_uid_gid` (`user_id`,`goods_id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=27 DEFAULT CHARSET=utf8mb4 COMMENT='订单表';

秒杀流程


功能点详细流程及伪代码

功能点流程结构:项目启动-用户登录-商品列表-商品秒杀详情-秒杀(服务端发送订单-客户端处理订单-轮询查询订单信息)

项目启动

  • 初始化

查询商品表明细,把商品库存信息存入redis,把商品是否存在库存标识作为内存标识存入集合map。

	public void afterPropertiesSet() throws Exception {
		List<GoodsVo> goodsList = goodsService.listGoodsVo();
		if(goodsList == null) {
			return;
		}
		for(GoodsVo goods : goodsList) {
			redisService.set(GoodsKey.getMiaoshaGoodsStock, ""+goods.getId(), goods.getStockCount());
			localOverMap.put(goods.getId(), false);
		}
	}
  • 拦截器

限流信息、用户信息、cookie信息

@Override
	public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {
		if(handler instanceof HandlerMethod) {
			MiaoshaUser user = getUser(request, response);
			UserContext.setUser(user);
			HandlerMethod hm = (HandlerMethod)handler;
			AccessLimit accessLimit = hm.getMethodAnnotation(AccessLimit.class);
			if(accessLimit == null) {
				return true;
			}
			int seconds = accessLimit.seconds();
			int maxCount = accessLimit.maxCount();
			boolean needLogin = accessLimit.needLogin();
			String key = request.getRequestURI();
			if(needLogin) {
				if(user == null) {
					render(response, CodeMsg.SESSION_ERROR);
					return false;
				}
				key += "_" + user.getId();
			}else {
				//do nothing
			}
			AccessKey ak = AccessKey.withExpire(seconds);
			Integer count = redisService.get(ak, key, Integer.class);
	    	if(count  == null) {
	    		 redisService.set(ak, key, 1);
	    	}else if(count < maxCount) {
	    		 redisService.incr(ak, key);
	    	}else {
	    		render(response, CodeMsg.ACCESS_LIMIT_REACHED);
	    		return false;
	    	}
		}
		return true;
	}

	private void render(HttpServletResponse response, CodeMsg cm)throws Exception {
		response.setContentType("application/json;charset=UTF-8");
		OutputStream out = response.getOutputStream();
		String str  = JSON.toJSONString(Result.error(cm));
		out.write(str.getBytes("UTF-8"));
		out.flush();
		out.close();
	}

	private MiaoshaUser getUser(HttpServletRequest request, HttpServletResponse response) {
		String paramToken = request.getParameter(MiaoshaUserService.COOKI_NAME_TOKEN);
		String cookieToken = getCookieValue(request, MiaoshaUserService.COOKI_NAME_TOKEN);
		if(StringUtils.isEmpty(cookieToken) && StringUtils.isEmpty(paramToken)) {
			return null;
		}
		String token = StringUtils.isEmpty(paramToken)?cookieToken:paramToken;
		return userService.getByToken(response, token);
	}

	private String getCookieValue(HttpServletRequest request, String cookiName) {
		Cookie[]  cookies = request.getCookies();
		if(cookies == null || cookies.length <= 0){
			return null;
		}
		for(Cookie cookie : cookies) {
			if(cookie.getName().equals(cookiName)) {
				return cookie.getValue();
			}
		}
		return null;
	}
  • 框架回调

参数对象校验、全局用户信息获取

	public boolean supportsParameter(MethodParameter parameter) {
		Class<?> clazz = parameter.getParameterType();
		return clazz==MiaoshaUser.class;
	}

	public Object resolveArgument(MethodParameter parameter, ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, WebDataBinderFactory binderFactory) throws Exception {
		return UserContext.getUser();
	}

用户登录

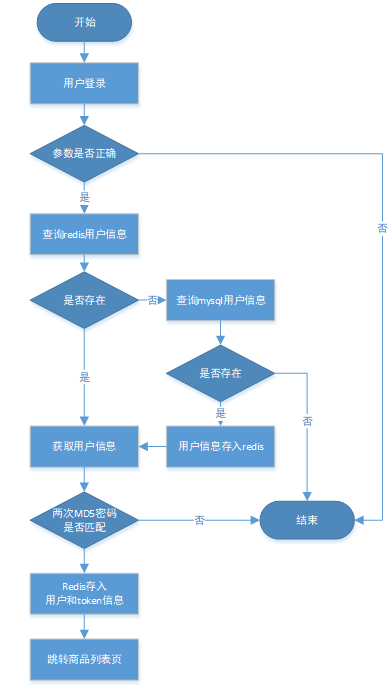

  • 流程图


  • 伪代码
    @RequestMapping("/to_login")
    public String toLogin() {
        return "login";
    }

    @RequestMapping("/do_login")
    @ResponseBody
    public Result<String> doLogin(HttpServletResponse response, @Valid LoginVo loginVo) {
    	log.info(loginVo.toString());
    	//登录
    	String token = userService.login(response, loginVo);
    	return Result.success(token);
    }
public String login(HttpServletResponse response, LoginVo loginVo) {
		if(loginVo == null) {
			throw new GlobalException(CodeMsg.SERVER_ERROR);
		}
		String mobile = loginVo.getMobile();
		String formPass = loginVo.getPassword();
		//判断手机号是否存在
		MiaoshaUser user = getById(Long.parseLong(mobile));
		if(user == null) {
			throw new GlobalException(CodeMsg.MOBILE_NOT_EXIST);
		}
		//验证密码
		String dbPass = user.getPassword();
		String saltDB = user.getSalt();
		String calcPass = MD5Util.formPassToDBPass(formPass, saltDB);
		if(!calcPass.equals(dbPass)) {
			throw new GlobalException(CodeMsg.PASSWORD_ERROR);
		}
		//生成cookie
		String token	 = UUIDUtil.uuid();
		addCookie(response, token, user);
		return token;
	}

	private void addCookie(HttpServletResponse response, String token, MiaoshaUser user) {
		redisService.set(MiaoshaUserKey.token, token, user);
		Cookie cookie = new Cookie(COOKI_NAME_TOKEN, token);
		cookie.setMaxAge(MiaoshaUserKey.token.expireSeconds());
		cookie.setPath("/");
		response.addCookie(cookie);
	}

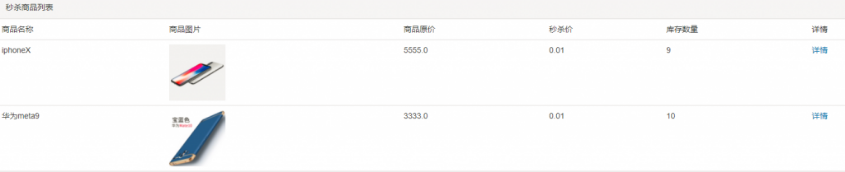

商品列表

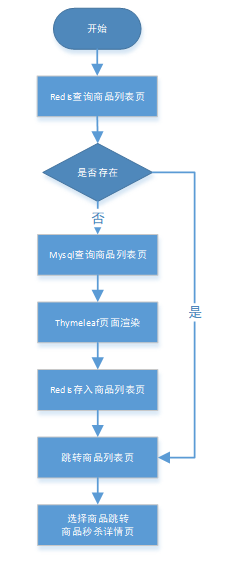

  • 流程图


  • 伪代码
@RequestMapping(value="/to_list", produces="text/html")
@ResponseBody
public String list(HttpServletRequest request, HttpServletResponse response, Model model,MiaoshaUser user) {
    model.addAttribute("user", user);
    List<GoodsVo> goodsList = goodsService.listGoodsVo();
    model.addAttribute("goodsList", goodsList);
    SpringWebContext ctx = new SpringWebContext(request,response,
            request.getServletContext(),request.getLocale(), model.asMap(), applicationContext );
    //手动渲染
    String html = thymeleafViewResolver.getTemplateEngine().process("goods_list", ctx);
    if(!StringUtils.isEmpty(html)) {
        redisService.set(GoodsKey.getGoodsList, "", html);
    }
    return html;
}

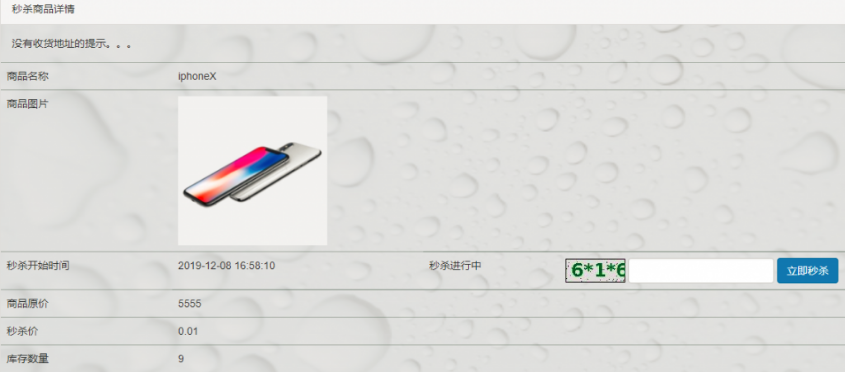

商品秒杀详情

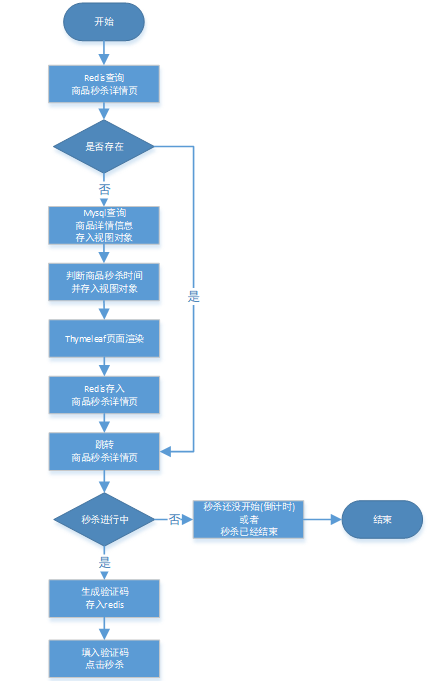

  • 流程图


  • 伪代码
@RequestMapping(value="/to_detail2/{goodsId}",produces="text/html")
    @ResponseBody
    public String detail2(HttpServletRequest request, HttpServletResponse response, Model model,MiaoshaUser user,
    		@PathVariable("goodsId")long goodsId) {
    	model.addAttribute("user", user);

    	//取缓存
    	String html = redisService.get(GoodsKey.getGoodsDetail, ""+goodsId, String.class);
    	if(!StringUtils.isEmpty(html)) {
    		return html;
    	}
    	//手动渲染
    	GoodsVo goods = goodsService.getGoodsVoByGoodsId(goodsId);
    	model.addAttribute("goods", goods);

    	long startAt = goods.getStartDate().getTime();
    	long endAt = goods.getEndDate().getTime();
    	long now = System.currentTimeMillis();

    	int miaoshaStatus = 0;
    	int remainSeconds = 0;
    	if(now < startAt ) {//秒杀还没开始,倒计时
    		miaoshaStatus = 0;
    		remainSeconds = (int)((startAt - now )/1000);
    	}else  if(now > endAt){//秒杀已经结束
    		miaoshaStatus = 2;
    		remainSeconds = -1;
    	}else {//秒杀进行中
    		miaoshaStatus = 1;
    		remainSeconds = 0;
    	}
    	model.addAttribute("miaoshaStatus", miaoshaStatus);
    	model.addAttribute("remainSeconds", remainSeconds);

    	SpringWebContext ctx = new SpringWebContext(request,response,
    			request.getServletContext(),request.getLocale(), model.asMap(), applicationContext );
    	html = thymeleafViewResolver.getTemplateEngine().process("goods_detail", ctx);
    	if(!StringUtils.isEmpty(html)) {
    		redisService.set(GoodsKey.getGoodsDetail, ""+goodsId, html);
    	}
    	return html;
    }

秒杀

服务端发送订单

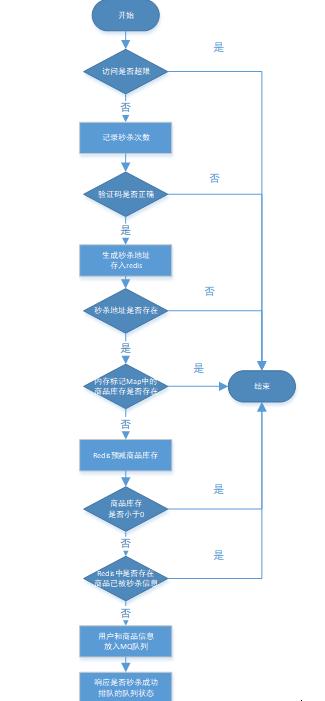

  • 流程图


  • 伪代码
@RequestMapping(value="/{path}/do_miaosha", method=RequestMethod.POST)
    @ResponseBody
    public Result<Integer> miaosha(Model model,MiaoshaUser user,
    		@RequestParam("goodsId")long goodsId,
    		@PathVariable("path") String path) {
    	model.addAttribute("user", user);
    	if(user == null) {
    		return Result.error(CodeMsg.SESSION_ERROR);
    	}
    	//验证path
    	boolean check = miaoshaService.checkPath(user, goodsId, path);
    	if(!check){
    		return Result.error(CodeMsg.REQUEST_ILLEGAL);
    	}
    	//内存标记,减少redis访问
    	boolean over = localOverMap.get(goodsId);
    	if(over) {
    		return Result.error(CodeMsg.MIAO_SHA_OVER);
    	}
    	//预减库存
    	long stock = redisService.decr(GoodsKey.getMiaoshaGoodsStock, ""+goodsId);//10
    	if(stock < 0) {
    		 localOverMap.put(goodsId, true);
    		return Result.error(CodeMsg.MIAO_SHA_OVER);
    	}
    	//判断是否已经秒杀到了
    	MiaoshaOrder order = orderService.getMiaoshaOrderByUserIdGoodsId(user.getId(), goodsId);
    	if(order != null) {
    		return Result.error(CodeMsg.REPEATE_MIAOSHA);
    	}
    	//入队
    	MiaoshaMessage mm = new MiaoshaMessage();
    	mm.setUser(user);
    	mm.setGoodsId(goodsId);
    	sender.sendMiaoshaMessage(mm);
    	return Result.success(0);//排队中
    }

客户端处理订单

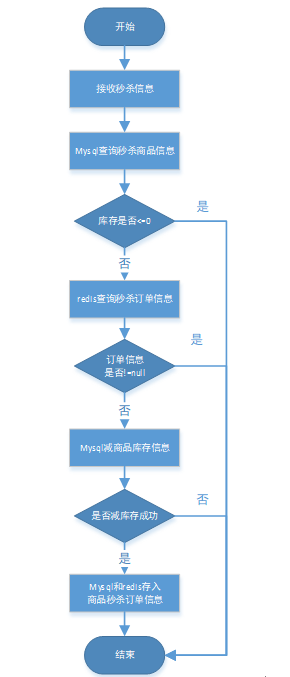

  • 流程图


  • 伪代码
@RabbitListener(queues=MQConfig.MIAOSHA_QUEUE)
		public void receive(String message) {
			log.info("receive message:"+message);
			MiaoshaMessage mm  = RedisService.stringToBean(message, MiaoshaMessage.class);
			MiaoshaUser user = mm.getUser();
			long goodsId = mm.getGoodsId();

			GoodsVo goods = goodsService.getGoodsVoByGoodsId(goodsId);
	    	int stock = goods.getStockCount();
	    	if(stock <= 0) {
	    		return;
	    	}
	    	//判断是否已经秒杀到了
	    	MiaoshaOrder order = orderService.getMiaoshaOrderByUserIdGoodsId(user.getId(), goodsId);
	    	if(order != null) {
	    		return;
	    	}
	    	//减库存 下订单 写入秒杀订单
	    	miaoshaService.miaosha(user, goods);
		}
@Transactional
	public OrderInfo miaosha(MiaoshaUser user, GoodsVo goods) {
		//减库存 下订单 写入秒杀订单
		boolean success = goodsService.reduceStock(goods);
		if(success) {
			//order_info maiosha_order
			return orderService.createOrder(user, goods);
		}else {
			setGoodsOver(goods.getId());
			return null;
		}
	}
	public boolean reduceStock(GoodsVo goods) {
		MiaoshaGoods g = new MiaoshaGoods();
		g.setGoodsId(goods.getId());
		int ret = goodsDao.reduceStock(g);
		return ret > 0;
	}
@Transactional
	public OrderInfo createOrder(MiaoshaUser user, GoodsVo goods) {
		OrderInfo orderInfo = new OrderInfo();
		orderInfo.setCreateDate(new Date());
		orderInfo.setDeliveryAddrId(0L);
		orderInfo.setGoodsCount(1);
		orderInfo.setGoodsId(goods.getId());
		orderInfo.setGoodsName(goods.getGoodsName());
		orderInfo.setGoodsPrice(goods.getMiaoshaPrice());
		orderInfo.setOrderChannel(1);
		orderInfo.setStatus(0);
		orderInfo.setUserId(user.getId());
		orderDao.insert(orderInfo);
		MiaoshaOrder miaoshaOrder = new MiaoshaOrder();
		miaoshaOrder.setGoodsId(goods.getId());
		miaoshaOrder.setOrderId(orderInfo.getId());
		miaoshaOrder.setUserId(user.getId());
		orderDao.insertMiaoshaOrder(miaoshaOrder);

		redisService.set(OrderKey.getMiaoshaOrderByUidGid, ""+user.getId()+"_"+goods.getId(), miaoshaOrder);

		return orderInfo;
	}
	private void setGoodsOver(Long goodsId) {
		redisService.set(MiaoshaKey.isGoodsOver, ""+goodsId, true);
	}

轮询查询订单信息

  • 流程图


  • 伪代码
    @RequestMapping(value="/result", method=RequestMethod.GET)
    @ResponseBody
    public Result<Long> miaoshaResult(Model model,MiaoshaUser user,
    		@RequestParam("goodsId")long goodsId) {
    	model.addAttribute("user", user);
    	if(user == null) {
    		return Result.error(CodeMsg.SESSION_ERROR);
    	}
    	long result  =miaoshaService.getMiaoshaResult(user.getId(), goodsId);
    	return Result.success(result);
    }
	public long getMiaoshaResult(Long userId, long goodsId) {
		MiaoshaOrder order = orderService.getMiaoshaOrderByUserIdGoodsId(userId, goodsId);
		if(order != null) {//秒杀成功
			return order.getOrderId();
		}else {
			boolean isOver = getGoodsOver(goodsId);
			if(isOver) {
				return -1;
			}else {
				return 0;
			}
		}
	}

最终页面展示



标题:java单应用体系下的秒杀案例-1
作者:yazong
地址:https://blog.llyweb.com/articles/2019/12/22/1578147367975.html
